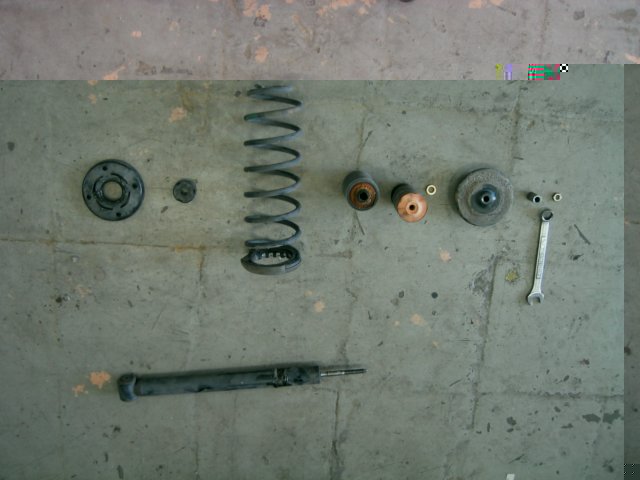

Rear suspension disassembled

From right (top) to left:

• 17mm nut
• spacer
• Spring plate
• chamfered washer
• Bump Stop (ripped)
• Shock boot(should be attached to the bump stop
• spring
• bottoming plate (protects the top of the shock from contact with the bumpstop, protecting the top oil seal)
• lower spring plate
