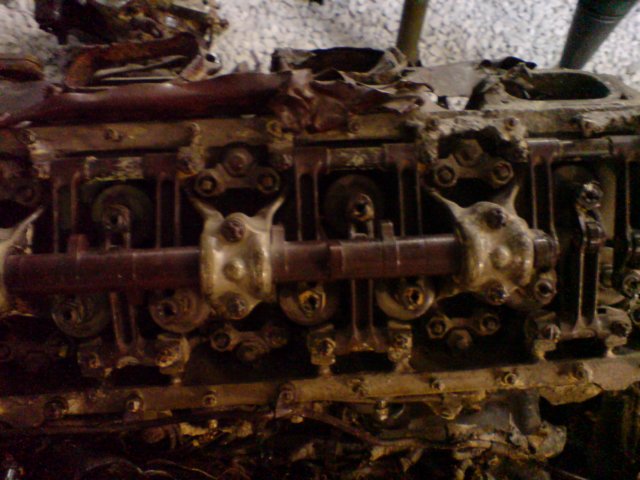

Valve gear and fuel injection pump from a DB-601 aircraft engine


This engine was recovered from a Swedish lake with the Junkers Ju-88 bomber. Note the single overhead cam, 2 intake and 1 exhaust valves. Also note the roller cam followers.
