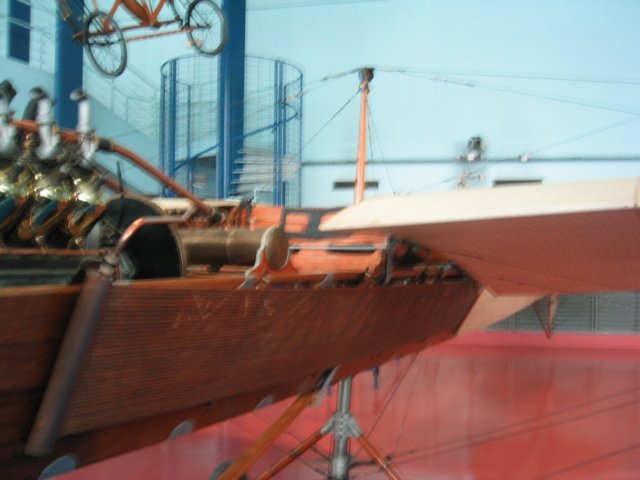

The cooling water goes to the header tank at the front, then down the rows of pipes to the after tank under the wing root, where it circulates back to the engine. No finning on the radiators, just loads of surface area. The radiartors form th sides of the fuselage. Note the seat is basically a picnic bench behind the fuel tank.
