Rear view |

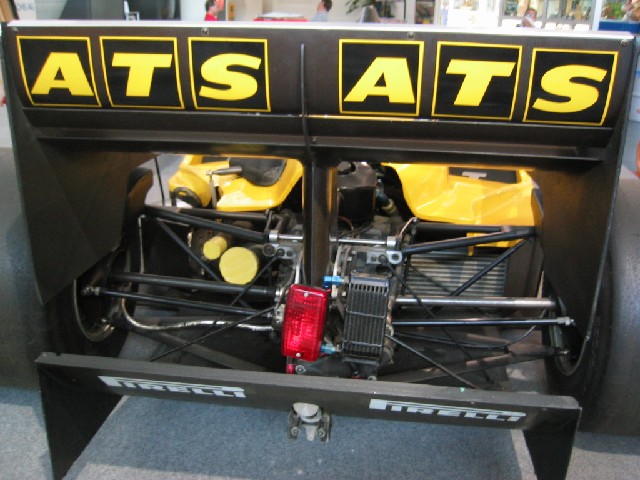

Note the rain light and the gearbox oil cooler attached to the wing mount. Also, this is a full ground effects car, wo the diffuser (with Pirelli logos) is connected to the tunnels under the side pods. To the left you can see the large exhaust pipe for the turbo (covered in yellow tape) and the smaller one for the wastegate. Further ahead you can see the rear anti-roll bar, which is only 12" long and solid bar, with adjustable end links. Toe the right sidepod is the intercooler.
